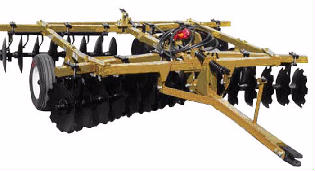

Tandem Disc, Wheel
Wide GT Series

FRAME: 4" x 4" x 1/4" Structural tubing
HITCH: Self leveling, spring cushioned with hand crank
GANGS & BEARINGS: 1 1/2" Square gang axles with greaseable trunnion mounted, triple sealed bearings with wear guards
GANGS: Adjustable - front 12° to 22° -  rear 9° to 21°
BLADES: 24" x 6mm notched front & plain rear - 9" spacing
SCRAPERS: Standard, adjustable individually or by gang
WHEELS & TIRES:  2 - 6 Bolt hub and spindle assy. 2 - 9.5L x 15" 8-ply tires
HYDRAULICS: 3 1/2" x 8" Cylinder with depth control and hoses
REAR HITCH: Standard equipment
