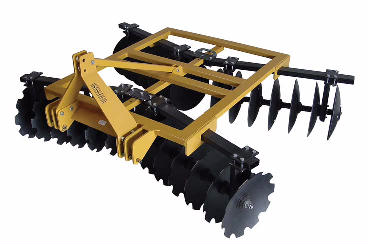

Tandem Disc 3-Pt.
Heavy Duty Series

                             • Cat. I & II, 3-pt. hitch, A.S.A.E. Quick Hitch.
                             • 3/16" x 22" Notched front and plain rear blades.
                             • Easy gang adjustment with special pull handles.
                             • Front and rear gangs adjustable to 7, 14 or 21 degrees.
                             • 1 1/8" High carbon square axles.
                             • 7 1/2" Long cast spool spacers.
                             • Optional: Bolt-on center mtd. shank w/6" sweep.

Item# and Item Description	Wt.	Set-up Time
T1622 HD Tandem Disc, 5′ - 6"	1100 lbs.	.5 hrs.
T2022 HD Tandem Disc, 6′ - 6"	1230 lbs.	.5 hrs.
T2422 HD Tandem Disc, 7′ - 6"	1515 lbs.	.5 hrs.
T2822 HD Tandem Disc, 8′ - 6"	1660 lbs.	.5 hrs.
T3222 HD Tandem Disc, 9′ - 6"	1760 lbs.	.5 hrs.
Options and Accessories
16HD1 Mud Scrapers for T1622		2 hrs.
20HD1 Mud Scrapers for T2022		2 hrs.
24HD5 Mud Scrapers for T2422		2 hrs.
28HD5 Mud Scrapers for T2822		2 hrs.
32HD5 Mud Scrapers for T3222		2 hrs.
