Rakes, Basket

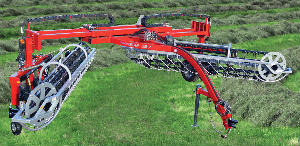

Twinstar 7 Bar Basket Rakes are designed for growers committed to producing superior quality hay. Twinstar Rakes produce consistent uniform windrows with less dirt, rocks, and debris than traditional wheel and rotary rakes. Twinstar models 2027 and 2030 are equipped with 7 tine bars which makes fluffier windrows, allows for increased raking time and higher ground speed. They are designed with double slide tubes for added strength. The baskets are now powered by heavy duty motors as standard equipment. The main hydraulic hoses fold and unfold in the unique Twinstar "Hose Trac" system. This clean, trouble free system gives total hose protection when extending and closing the double extension beams. Gauge wheels front and rear are optional equipment.


Item# and Item Description Wt.
2024-G2
24′ Basket Hayrake
3500 lbs.
2027-G2
27′ Basket Hayrake
5100 lbs.
2030-G2
30′ Basket Hayrake
5600 lbs.

Options and Accessories
2027-G2FT
Full Tines on 27′ Rake
2030-G2FT
Full Tines on 30′ Rake
5612-G2
Gauge Wheels
5712-G2
Gauge Wheels
HR-2024-G2FT
Full Tines
HR-2410
Ball Hitch
HR-4600
4 Hose Option
HR-4700
Heavy Duty Drive Motor
HR-4800
6 Function Hydraulic Valve
HR-4900
Extra Heavy Duty Motors
HR-5000
Split Hydraulic Manifold
HR-5600-G2
Front Gauge Wheels
HR-5700-G2
Rear Gauge Wheels
HR-5800
Basket Angle Stop Kit
Additional Pictures

(click on the thumbnail to enlarge)

additionalPictures_items_Rakes_Basket/2027-2030_G2_7_Rakes_tn.jpg
additionalPictures_items_Rakes_Basket/2027-2030_G2_5_Rakes_tn.jpg
