Home  >  Discs  >  Pull  > "VWT" Series Wheel Disc, 20 Blades

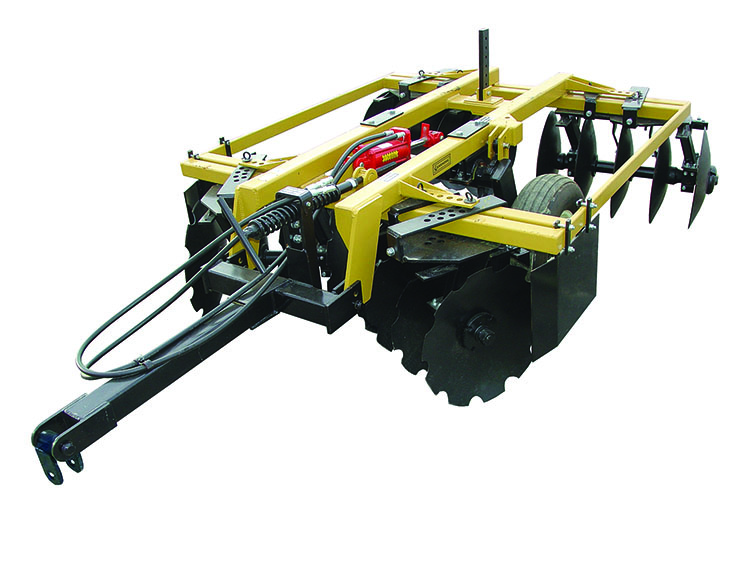

"VWT" Series Wheel Disc, 20 Blades

Item #: BWVWT24-20
The Disc frame measure 4" x 4" x 1/4" and is constructed from structural tubing.
You must be logged in to order this item.
Log in here
BWVWT24-20
The gang frame is designed for full adjustability from front to rear. It features a self-leveling hitch that is spring cushioned and operated with a hand crank. The axles are 1-1/2" square with trunnion mount, equipped with double lip sealed greaseable bearings and wear shields. The blades are 24" x 4.5, while the spools consist of 9" steel spacer spools and cast iron half spools. The hydraulic system includes a 3-1/2" x 8" cylinder, and the center shank measures 1" x 3", complete with an adjustable foot piece. The wheel assembly features a 6-bolt hub and spindle, paired with a 9.5L x 15" 8-ply tire.

Discs

Cutting Width
7' 2" to 8' 6"
Weight
2,680 lbs.
BWVWT24-20
"VWT" Series Wheel Disc, 20 Blades
