"GT" Wheel Disc, 28 Blades

Item #: BWGT-28T

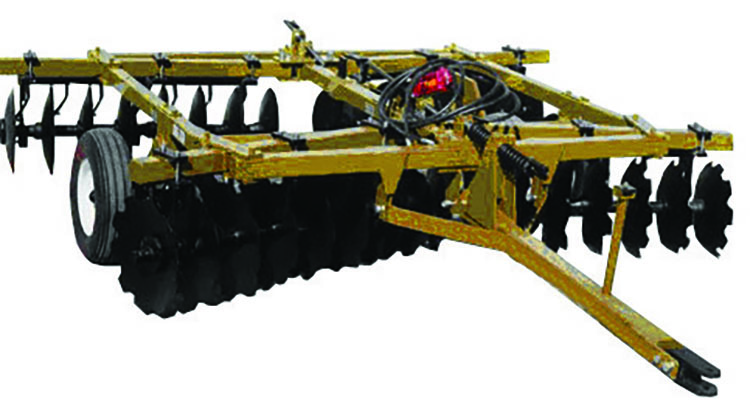

The "GT" Series Disc frame measures 4" x 4" x 1/4" and is constructed from structural tubing.
You must be logged in to order this item.
Log in here
BWGT-28T
This Disc features a self-leveling hitch that is spring cushioned and operated by a hand crank. The gang axles are 1-1/2" square, equipped with greaseable trunnion-mounted double-sealed bearings with wear guards. The gangs are adjustable, allowing for a front angle of 12° to 22° and a rear angle of 9° to 21°. The blades are available in 24" x 6mm notched or plain, with a spacing of 9". Scrapers are standard and can be adjusted individually or by gang. The wheels consist of a 4-6 bolt hub and spindle assembly, paired with four 9.5L x 15" 8-ply tires. The hydraulic system includes a 3-1/2" x 8" cylinder with depth control and hoses, along with a 1" x 3" center shank. A standard rear hitch is also included.

Discs

Cutting Width
10' 6"
Weight
3,700 lbs.
BWGT-28T
"GT" Wheel Disc, 28 Blades
